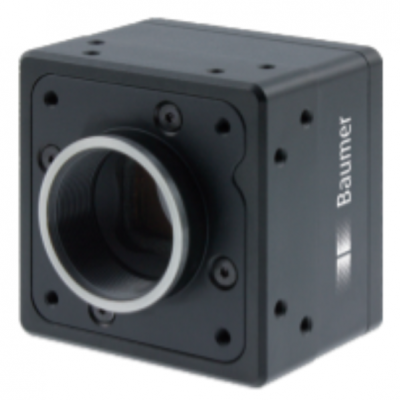

| 是否进口：否 | 品牌：Baumer | 型号：HXG40NIR |
Sensor Information Model Name CMOSIS CMV-4000 Type 1鈥� progressive scan CMOS Native Resolution 2048 脳 2048 pixels Exposure Time 20 碌sec ... 1 sec Color Filter RGB Bayer Mosaic Mechanical Data Housing Aluminum, IP40 Lens Mount C-Mount, F-Mount Dimensions 52 脳 52 脳 37 mm Weight 185 g Electrical Data Power Supply 9.6 ... 30 V DC Power Consumption approx. 5.5 Watts Environmental Data Operating Temperature +5 掳C ... +60 掳C (+41 掳F ... +131 掳F) Humidity 10% ... 90% non condensing Baumer Optronic GmbH Badstrasse 30 DE-01454 Radeberg, Germany Phone +49 (0)3528 4386 0 Fax +49 (0)3528 4386 86 sales@baumeroptronic.com /cameras Technical data has been fully checked, but accuracy of printed matter not guaranteed. Subject to change without notice. Printed in Germany 09/11 Acquisition Formats Image Formats Full Frame 2048 脳 2048 pixels max. 180.0 fps Pixel Formats BayerGB8, BayerGB10, BayerGB12 Partial Scan True Partial Scan, Region of Interest (ROI) arbitrary Camera Features Internal Buffer 256 MBytes (max. 60 images) Synchronization Free running, Trigger Trigger Sources Hardware, Software, FrameGrabber Trigger Delay 0 ... 2 sec, Tracking and buffering of up to 512 trigger signals Sequencer Automated control for series of images using different sets of parameters Sequencer Characteristics up to 128 sets of parameters, up to 4 billion loop passes, up to 4 billion repetitions of sets of parameters, up to 4 billion images per trigger event Sequencer Parameters Exposure Time, Gain Factor, Output Digital I/Os 3 input lines (with Debouncer), 3 output lines Interfaces and Connectors Data Interface CameraLink庐 Base, Medium und Full Connector: 2x Standard SDR26 (Mini CL)
