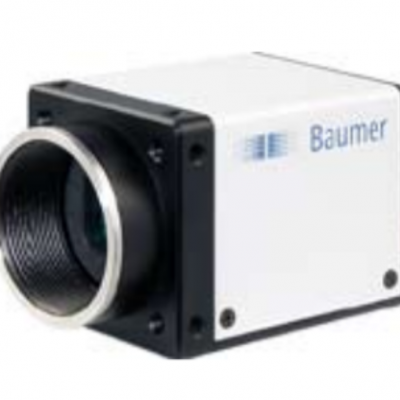

| 是否进口：否 | 品牌：Baumer | 型号：TXG12 |
Digital Color Matrix Camera, 1.2 Megapixels, Gigabit Ethernet Sensor Information Model Name SONY庐 ICX445 Type 1/3鈥� interline progressive scan CCD Native Resolution 1296 脳 960 pixels Exposure Time 4 碌sec ... 60 sec Color Filter RGB Bayer Mosaic Acquisition Formats Image Formats Full Frame HQ Full Frame 1296 脳 960 pixels 1296 脳 960 pixels max. 16.0 fps max. 32.0 fps Pixel Formats 1) Mono8, BayerRG8, BayerRG12, RGB8 Packed, BGR8 Packed, YUV411 Packed, YUV422 Packed, YUV444 Packed Partial Scan True Partial Scan, Region of Interest (ROI) arbitrary Image Pre-processing Analog Controls Gain (0 ... 20 dB), Offset (0 ... 1023 LSB | 14 bit) Color Models RGB, YUV, Mono Color Processing Integrated color processor for high quality color calculation Color Adjustment One Push White Balance, User-specific color adjustment Interfaces and Connectors Data Interface Gigabit Ethernet, Transfer rate 1000 Mbits/sec Connector: 8P8C Modular Jack (RJ45), screw lock type Process Interface M8 / 4 pins Power Interface M8 / 3 pins Mechanical Data Housing Aluminum, IP40 Lens Mount C-Mount Dimensions 36 脳 36 脳 48 mm Weight <90 g Electrical Data Power Supply 8 ... 30 V DC Power Consumption approx. 3.6 Watts Environmental Data Operating Temperature +5 掳C ... +50 掳C (+41 掳F ... +121 掳F) Humidity 10% ... 90% non condensing Camera Features Internal Buffer 32 MBytes (max. 7 images) Synchronization Free running, Trigger Trigger Sources Hardware, Software, ActionCommand Trigger Delay 0 ... 2 sec, Tracking and buffering of up to 512 trigger signals Digital I/Os 1 input line (with Debouncer), 1 output line
